Italian lines are simplicity themselves.
They show the number of hours since the last sunset, however their practical use is in reality the number of
hours until the next sunset. They complement Babylonian hour lines which deal with sunrise.
Italian lines are latitude specific and thus cannot be corrected for latitude using the usual tricks.

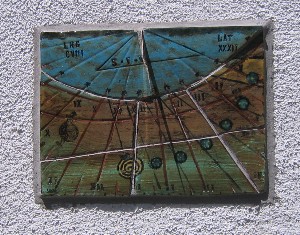

Here is an example of a vertical decliner dial built empirically, but with Italian hour lines added using the
standard method. This is specific to the latitude of Silver City, NM USA.
And here is an example of several dials using Italian lines,
and it includes a table which is also in the appendices book
here.
The method of drafting Italian hour lines is simplicity itself.
1. Identify sunset for the winter solstice (vertical) or summer
solstice (horizontal). Ditto for the equinox. IGNORE EOT
2. Mark one hour before that for the solstice and equinox
3. Draw a line and extend towards the other solstice.
4. Mark that line as 1 hour to sunset.
5. Repeat for 2, 3, 4 etc hours before sunset.
They show the number of hours since the last sunset, however their practical use is in reality the number of
hours until the next sunset. They complement Babylonian hour lines which deal with sunrise.
Italian lines are latitude specific and thus cannot be corrected for latitude using the usual tricks.
Here is an example of a vertical decliner dial built empirically, but with Italian hour lines added using the
standard method. This is specific to the latitude of Silver City, NM USA.
And here is an example of several dials using Italian lines,
and it includes a table which is also in the appendices book
here.
The method of drafting Italian hour lines is simplicity itself.
1. Identify sunset for the winter solstice (vertical) or summer
solstice (horizontal). Ditto for the equinox. IGNORE EOT
2. Mark one hour before that for the solstice and equinox
3. Draw a line and extend towards the other solstice.
4. Mark that line as 1 hour to sunset.
5. Repeat for 2, 3, 4 etc hours before sunset.
